Description

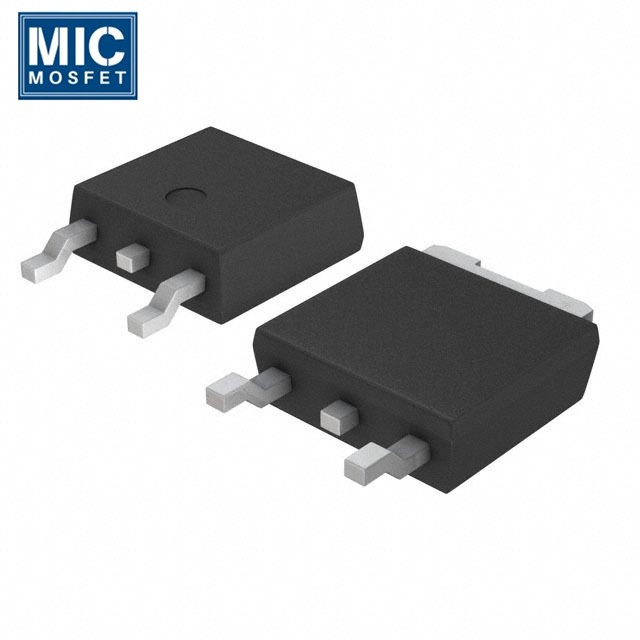

Alternative and equivalent for Vishay IRFR9110 MOSFET TO-252
MIC MOSFET have our own version to replace above mention MOSFET item, following specification for reference only, kindly inquiry [email protected] for more detail datasheet and quote.
| PartNumber: | IRFR9110 |
|---|---|
| Supplier: | MIC |
| Description: | MOSFET P-CH 100V 3.1A DPAK |
| Categories: | Discrete Semiconductor Products |
| RoHs Status: | Lead free / RoHS Compliant |
| Series: | - |
| Package: | Bulk |
| Part Status: | Active |
| FET Type: | P-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 100 V |
| Current - Continuous Drain (Id) @ 25°C: | 3.1A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | - |
| Rds On (Max) @ Id, Vgs: | 1.2Ohm @ 1.9A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 8.7 nC @ 10 V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 200 pF @ 25 V |
| FET Feature: | - |
| Power Dissipation (Max): | 2.5W (Ta), 25W (Tc) |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | D-PAK (TO-252AA) |
| Package / Case: | TO-252-3, DPak (2 Leads + Tab), SC-63 |
